Applications
Premium quality, abrasion resistant, heavy duty fire hose. Designed for prolonged storage and extended service for emergency fire protection.
Pressure Ratings
250# Service Test Pressure
500# Proof Test Pressure
750# Burst Pressure
Construction
100% polyester woven single jacket. Lining is single ply extruded synthetic rubber, compounded to resist ozone. Hose is impervious to mildew and never needs drying.
Temperature Range
-40 degrees F to 180 degrees F
-40 degrees C to 82 degrees C
Special Characteristics
Available with UL label at an additional cost. Lightweight and easy to handle.
HOSE SIZE-2-1/2″ BOWL SIZE- 2-3/4″ WEIGHT PER 50′ UNCOUPLED- 23LBS
Description
2-1/2″ Single Jacket Fire Hose (500 LB Test)
Our Single Jacket Fire Hose 500 LB Test is of premium. This quality fire hose is engineered to be abrasion resistant and impervious to mold / mildew for heavy-duty usage. This fire hose is designed to be easily deployed. It is built for prolonged storage and offers extended service life. All fire hose products provided by Rawhide Fire Hose meet or exceed NFPA 1961 standards. Note: All hoses should be inspected and tested per NFPA 1962 guidelines, provided the application falls under this jurisdiction.
Jacket Construction:
This Single Jacket Fire Hose 500 LB Test is comprised of a single jacket, woven evenly and free of defects, from spun polyester yarn offering superior strength
and wear characteristics. The warp yarn is standard 100% polyester. The filler yarns are high strength,
low elongation, filament type polyester, in order to reduce weight while increasing flexibility. In addition the jacket is processed with a

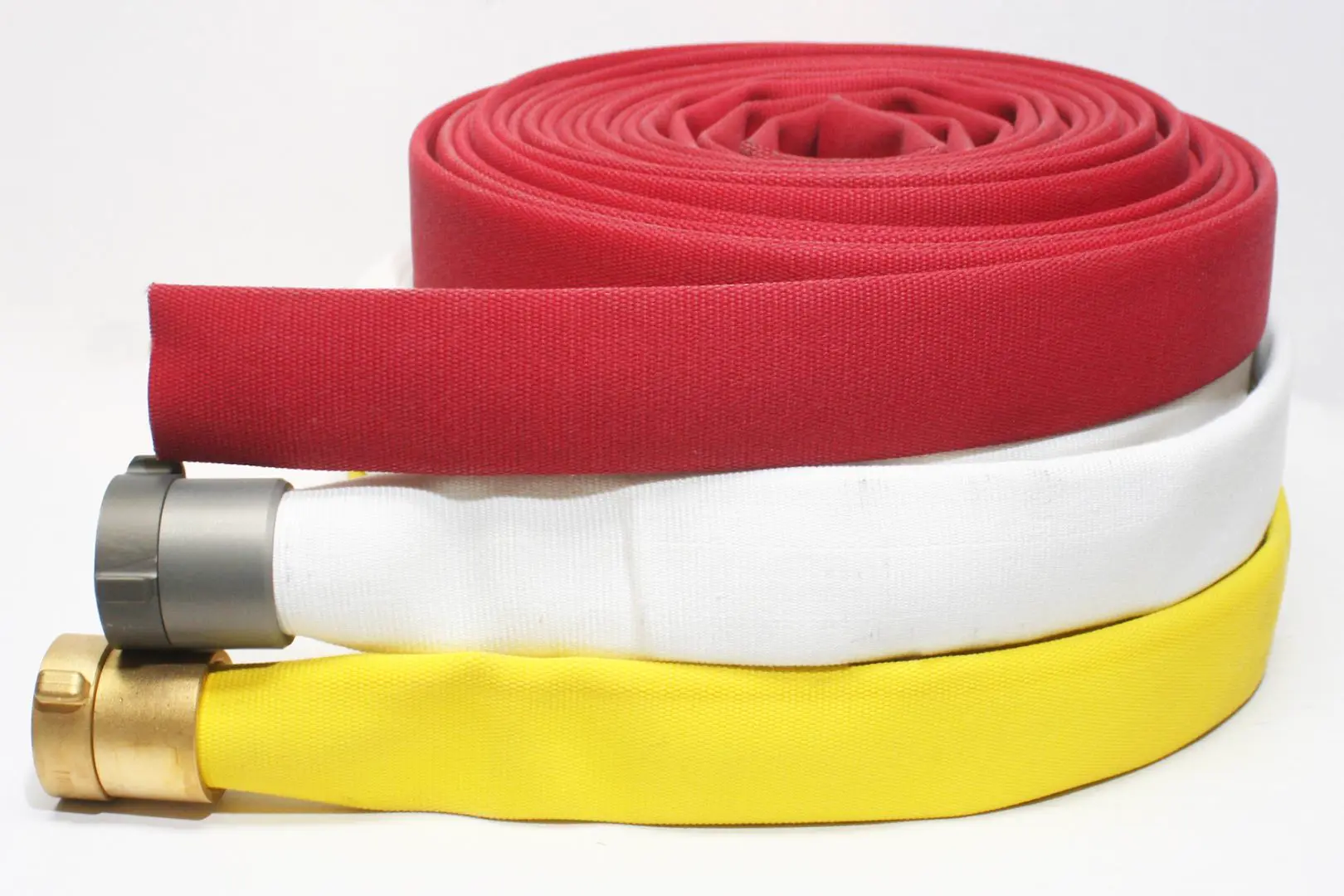

treatment that helps to resist mold and mildew. This fire hose is available in white, red or yellow, as standard, with other colors available upon request. Standard lengths include 50’, 75’ and 100’. This fire hose can be coupled with anodized aluminum ( Threaded or Storz), brass threaded or camlock shanks. For custom lengths and/or coupling configurations to get your order started. Contact TEAM RAWHIDE
Lining:
The rubber lining is a single ply, extruded, synthetic EPDM tube, compounded to resist ozone. The manufacturing process includes a vulcanization phase that bonds the lining to the outer jacket.
Pressure Ratings: (NFPA Pressure Definitions & Reference Chart)
250# Service Test Pressure
500# Proof Test Pressure
750# Burst Pressure
Couplings:
As required per specification(s). Available with internal expansion ring threaded aluminum couplings, NH/NST or NPSH/IPT. Storz, shank or cam-lock couplings or special threaded couplings are available upon request.
Temperature Range:
-40 degrees F to 180 degrees F
-40 degrees C to 82 degrees C
Special Characteristics:
Lightweight and easy to handle. Wear and length of service can be extended by maintaining fire hose assemblies. (The Complete Guide for Cleaning Fire Hoses)
