Applications
Flexible, strong and abrasion resistant. Manufactured to exacting municipal requirements. Designed to be the ultimate in industrial fire protection.
Pressure Ratings
300# Service Test Pressure
600# Proof Test Pressure
1000# Burst Pressure
Construction
100% polyester (virgin fiber) yarn compact weave immune to mildew. Filler yarn (high strength, low stretch material) coverage in both jackets. Single-ply extruded rubber tube, compounded to resist ozone.
Temperature Range
-40 degrees F to 180 degrees F
-40 degrees C to 82 degrees C.
Special Characteristics
Available in other colors upon request with Dura-Shield coating.
Description

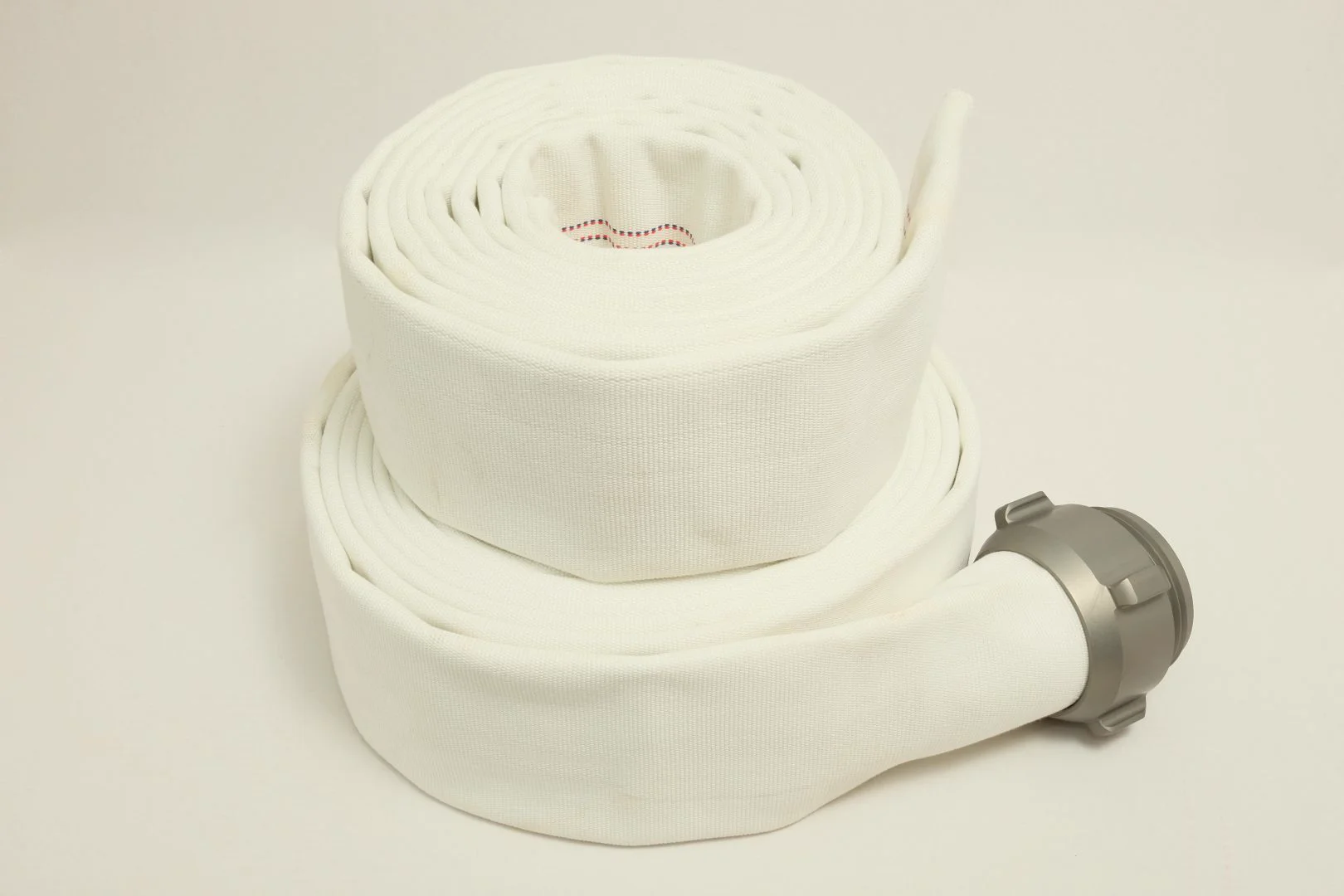

Double Jacket Fire Hose (600 LB Test)
The double jacket fire hose (600 lb test) is flexible, strong and abrasion resistant. Manufactured to exacting municipal requirements. Designed to be the ultimate in industrial and municipal fire protection.
Attack Hose
A fire hose is a high-pressure hose that carries water or other fire retardant (such as foam) to a fire to extinguish it. Outdoors, it attaches either to a fire engine or a fire hydrant. Indoors, it can permanently attach to a building’s standpipe or plumbing system.
Attack hose is a fabric-covered, flexible hose used to bring water from the fire pumper to the nozzle. This hose is designed to operate at pressures up to about 300 psi. The standard lengths are 50 and 100’, with custom lengths built to meet specific requirements.
Jacket Construction:
The jackets are woven evenly and free of defects, from spun polyester yarn that offers superior strength
and wear characteristics. The warp yarn is standard 100% polyester. The filler yarns are high strength,
low elongation, filament polyester to reduce weight and increase flexibility. In addition the jacket is
treated to resist mold and mildew.
Lining:
The rubber lining is a single ply, extruded, synthetic EPDM tube, compounded to resist ozone. Under
this specification, the construction of this hose is to be manufactured fully backed.
Couplings:
As required per specification(s). Available with internal expansion ring threaded aluminum.
( NH/NST and NPSH/IPT standard. Custom thread patterns
available upon request )
Pressure Ratings:
300# Service Test Pressure
600# Proof Test Pressure
1000# Burst Pressure
Temperature Range:
-40 degrees F to 180 degrees F
-40 degrees C to 82 degrees C
Special Characteristics:
Standard color is white. Available in yellow and red upon request. Standard lengths
are 50’ and 100’. Custom lengths are available. Hose meets the standards and specifications of
Underwriters Laboratories, Inc. (UL), including UL-19 (tensile strength & elongation) for rubber-lined
hoses. All hoses are stenciled with 1” characters stating “service test to 300 PSI Per NFPA 1962 “ and
the service date in a contrasting color indelible ink.
Service Life:
This hose has a potential service life of ten (10) years, notwithstanding mistreatment and/or misuse.
Defective hose, couplings and configurations will be replaced at no charge.
